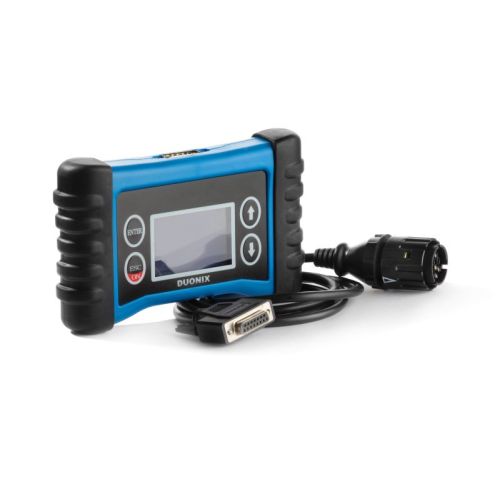

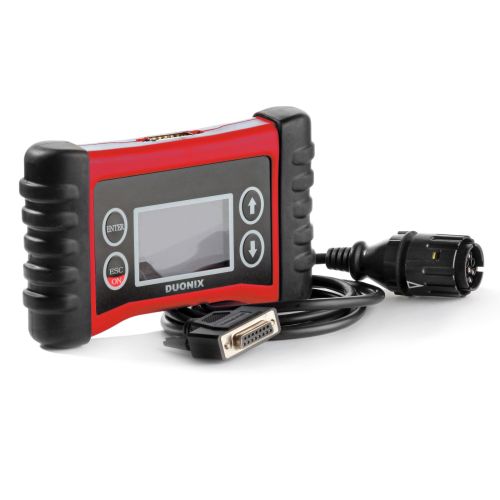

Diagnostic tool Duonix Bikescan-100 for motorbikes with 10 pin diagnostic connector

The Bikescan-100 is small and powerful and therefore ideal for professional control unit diagnostics on BMW motorbikes. This system covers the entire motorbike electronics and makes troubleshooting much easier for the user. Many special functions and settings can be carried out directly on the device without connecting the system to a computer or laptop. Ideal for travelling.

Special functions:
- Service reset date / path
- Date and time setting e.g. following a battery replacement
- Reset of adaptation values
- Specific actual values
- Reading current km
- Reading VIN
- Valve clearance service reset
- Calibration of the fill level indicator sensor in the tank (e.g.: foil sensor 1200GS)
- Idle actuator calibration
- Brake wear indicator initialisation
- Windshield calibration
- ESA calibration
- Stepper adjustment
- Exhaust flap adjustment
- Gear adaptation adjustment
- Free updates
- Actuator diagnosis
- Tire pressure sensor teaching / programming
- No limitation or restriction on models

Supported protocols:
- KWP-2000 specific
- CAN BUS specific
- UDS specific

Which models are supported?
All BMW series / models C1 / R / K / F / G / HP / S with 10-pin diagnostic connector
from year of manufacture 2000- 2016

Scooter C1
R1100S
R1150
R1200R
R1200RT
R1200GS Adventure
K1200S
K1300S
K1300R
F650GS
F800ST
F800GS
F800R
HP4
HP2 Sport*Megamoto
S1000RR
S1000R
S1000XR
R nineT
K1600
K50 R1200 LC
K51 R1200GS Adventure
K52 R1200RT
K53 R1200R
F700GS
G650GS
F650XX
C600
C650
G450
K17 C-evolution
etc.

K50 R1250GS (2018 - )

HUSQVARNA:
Nuda 900 / R
TR 650

Supported Controllers:
- Engine electronics from Motronic 2.4
- Central Electronics
- Instrument cluster
- Tire pressure control
- ABS - Antilock Braking System from I-ABS
- Anti-theft alarm
- Radio
- Radio control unit
- Electric Hydraulic tilt stand

Scope of delivery:
Device, case, 10-pin diagnostic cable, USB cable and manual.
