Touratech Suspension Touratech Suspension lowering Cartridge Kit -25mm for Honda CRF1100L Africa Twin from 2020

AU$2,997.00
Delivery time: 3-4 Weeks

Delivery time: 3-4 weeks

(with the advance payment from the day after the payment order by the customer, and for other methods of payment from the day after the contract)

Part number
01-403-5877-0
incl. 10% Tax

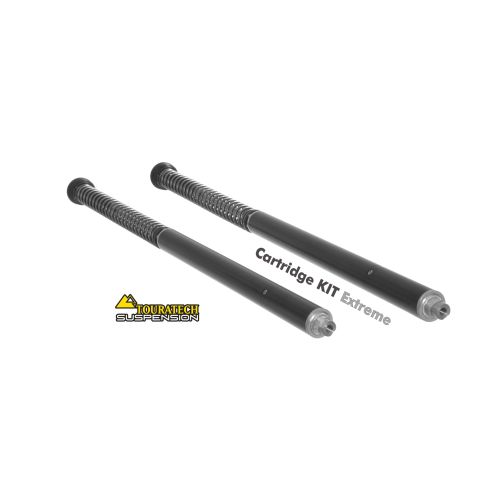

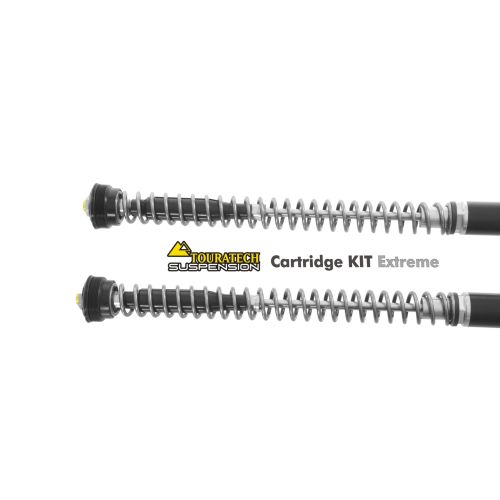

This Cartridge Kit is perfect for reducing the seat height (-25mm) on the Honda CRF1100L Africa Twin. Putting it simply, the Touratech Suspension Cartridge Kit Extreme is a suspension strut for the fork and the absolute top end in terms of suspension technology. The Closed Cartridge is installed into the original fork. This way the fork bridge/handlebar mount, brakes and wheel control and handlebar geometry are retained in full.  No additional modifications to the fork are required This Closed Cartridge  is been developed perfectly for touring and riding with frequent and strongly differing loads and riding conditions or extreme requirements.



Facts at a glance:

- This shock absorber is configured and adjusted ready for use based on our experience with the Honda CRF1100L Africa-Twin for -25mm less ground clearance

- With this suspension solution, the rear and front area of the motorcycle must be modified together.

- If only one component is changed, optimal handling will not be achieved.



The basic setup is adjusted for the demanding adventure rider with luggage.

Adaptation for exceptional requirements is possible. The suspension strut is then customised by us to your requirements using a spring with a suitable spring rate and other configurations.



Scope of delivery:

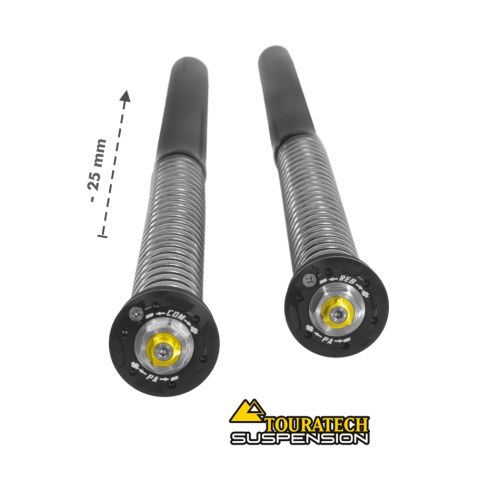

- 2x Closed Cartridge -25mm

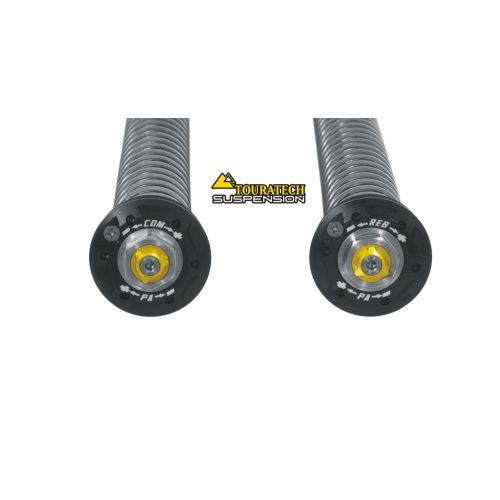

- with damper setting, (1x) rebound stage, (1x) compression stage.

- with spring preloading via adjustment tool (2x)

- adjustment tool

- ready for installation and ready-to-ride, fitted with pre-mounted fork spring.

- 1 litre oil (for installation of fork)

- user manual and instructions for installation

- 2x Fork protection sticker.



Important note:

With this suspension solution, the rear and front area of the motorcycle must be adapted together. The side stand and / or main stand must be adapted to ensure that your Honda CRF1100L Africa Twin stands securely.



If you have any further questions, we will be happy to advise you. Contact us.

More Information
Part number 01-403-5877-0
Delivery 3-4 Weeks
do_not_import_product No
Use Distri Availability Yes
Suspensiontyp Travel
Street legal Yes
Bike-Manufacturer Honda
Model CRF 1100 L Africa Twin
Colour black
Manufacturer Touratech Suspension
Model year from 2020
